Essential Procedures Involved in the Sand Casting Process for Metal Fabrication and Manufacturing

The Steps of Sand Casting

Sand casting is one of the oldest and most versatile methods of metal casting, widely used across various industries to create intricate metal parts. This process involves several key steps, each playing a crucial role in the production of high-quality castings. In this article, we will explore the essential steps involved in the sand casting process.

1. Designing the Mold

The first step in sand casting is designing the mold, which serves as the cavity into which molten metal will be poured. The mold can be made from either a single piece or multiple pieces, depending on the complexity of the desired final shape. Engineers or designers create a detailed drawing of the part, outlining its dimensions and features. This design is crucial, as it dictates the entire casting process and the final product's quality.

2. Making the Pattern

Once the mold design is finalized, the next step is to create a pattern. A pattern is a replica of the desired casting, made from materials such as wood, metal, or plastic. Patterns are typically slightly larger than the final casting to account for material shrinkage during cooling. The pattern is placed in fine sand mixed with a binding agent, and the sand is compacted around it, forming an impression of the part.

3. Preparing the Mold

After the pattern is made, the next step is to prepare the mold. This involves removing the pattern from the sand, resulting in a mold cavity that reflects the shape of the pattern. The mold is then often coated with a refractory material to improve its surface finish and reduce metal adhesion. Additionally, the mold must be properly vented to allow gases to escape during the pouring process.

4. Melting the Metal

With the mold ready, the next step is to prepare the metal. The type of metal to be cast is selected based on the requirements of the final product, which could include aluminum, iron, or bronze. The metal is then melted in a furnace, reaching extraordinarily high temperatures until it becomes a liquid. Care is taken to monitor the temperature closely to ensure the molten metal is at the correct temperature for pouring.

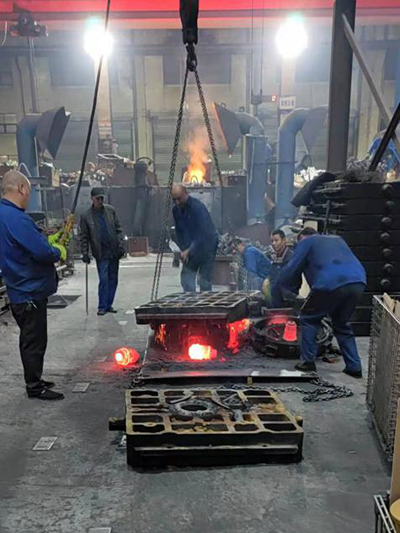

5. Pouring the Metal

Once the metal is molten, it is ready to be poured into the mold. This step requires careful handling to ensure safety and precision. The molten metal is poured through a sprue (an inlet into the mold) and fills the cavity created by the pattern. It’s essential to pour the metal at the right speed and angle to prevent defects such as air pockets or turbulence, both of which can compromise the quality of the casting.

6. Cooling and Solidification

After pouring, the molten metal must cool and solidify within the mold. The cooling time varies depending on the thickness of the casting and the type of metal used. During this stage, the metal takes on the shape of the mold, and the heat dissipates as the part solidifies.

7. Removing the Casting

Once the metal has cooled completely, the mold is broken apart to retrieve the casting. This is typically done using mechanical or manual methods, depending on the mold's design. Care must be taken to avoid damaging the casting during removal.

8. Finishing Operations

The final step involves finishing operations, such as trimming, grinding, and machining the casting to achieve the desired dimensions and surface finish. Any excess material, such as gates or risers, is removed, and the part may undergo additional processing, such as heat treatment, to enhance its mechanical properties.

Conclusion

The sand casting process, from designing the mold to the finishing touches on the final product, is a meticulous and skilled operation. Understanding each step is vital for achieving high-quality castings used in various applications, demonstrating the enduring importance and versatility of sand casting in modern manufacturing.
