Understanding Tolerances in Sand Casting for Improved Precision and Quality Control

Sand Casting Tolerances Understanding the Key Factors for Precision Manufacturing

Sand casting is one of the oldest and most versatile manufacturing processes, widely used to create complex shapes and components in various industries, including automotive, aerospace, and general engineering. While it's celebrated for its ability to produce intricately designed parts, achieving precise dimensions and tolerances remains a critical challenge. Understanding sand casting tolerances is essential for ensuring component quality and performance.

What are Sand Casting Tolerances?

Tolerances in sand casting refer to the allowable variations in dimensions of the cast parts. These tolerances dictate how much deviation from the specified dimensions is acceptable during the manufacturing process. Properly defining tolerances is crucial for ensuring that the final product meets functional requirements and fits correctly with other components.

Factors Affecting Tolerances in Sand Casting

Several factors influence the tolerances achievable in sand casting

1. Pattern Design The creation of the pattern is the foundational step in sand casting. The pattern must account for dimensional changes due to shrinkage, which occurs as the molten metal cools and solidifies. A well-designed pattern can significantly improve the accuracy of the final casting.

2. Material Properties Different materials exhibit different shrinkage rates and solidification characteristics. Metals such as aluminum and cast iron have predictable shrinkage behaviors, while others may not, impacting the achievable tolerances.

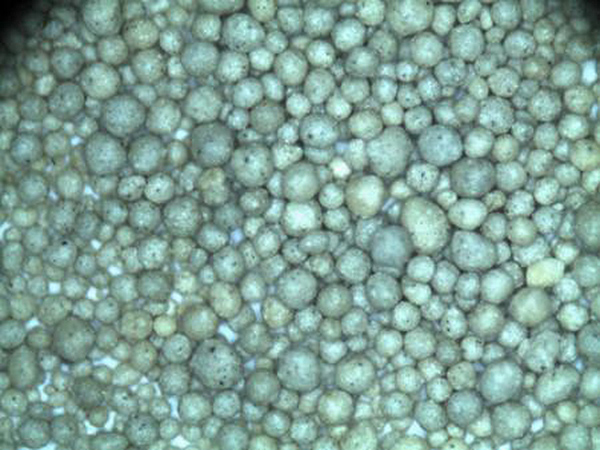

3. Sand Quality The quality of the sand used in the mold-making process affects the resolution of fine details in the casting. Finer sand can produce smoother surfaces and better detail, leading to tighter tolerances. However, overly fine sand can also lead to defects such as sagging or deformation.

4. Mold and Core Production The methods and precision involved in creating molds and cores are vital. High-quality molds contribute to better dimensional accuracy. Non-uniformities in the mold can result in variations in the final product.

5. Cooling Rate The cooling rate of the molten metal can influence internal and external features of the casting. Rapid cooling can lead to increased stresses and potential warping, affecting the overall dimensions of the part.

6. Machining Post-Cast While sand casting can achieve reasonable tolerances, additional machining may be necessary to attain the precise dimensions required for critical applications. Understanding the tolerances in the initial casting allows manufacturers to plan for which areas may need additional work.

To ensure consistency and reliability, industry standards dictate established tolerances for sand castings. Organizations such as the American Foundry Society (AFS) provide guidelines that specify tolerances based on factors such as material type, casting size, and shape complexity.

For instance, AFS specifies that typical tolerances for sand cast components can range from ±0.5% to ±2% of the actual dimension depending on the size of the part. Smaller parts may achieve tighter tolerances, while larger components typically permit greater variation.

Importance of Tolerances in Sand Casting

Understanding and specifying appropriate tolerances in sand casting is vital for several reasons

1. Functionality Precise tolerances ensure that parts function correctly in assemblies, reducing the risk of failures caused by poor fits.

2. Cost Efficiency Properly defined tolerances can minimize waste and reduce the need for excessive rework or remanufacturing, thus lowering production costs.

3. Customer Satisfaction Adhering to specified tolerances can enhance the reliability and quality of the final product, which is crucial for customer satisfaction in competitive markets.

Conclusion

Navigating the complexities of sand casting tolerances is essential for manufacturers seeking to produce high-quality components. Factors such as pattern design, material properties, mold quality, and cooling rates all play significant roles in achieving the desired accuracy. By understanding these elements and adhering to industry standards, manufacturers can optimize their processes, enhance product quality, and ultimately drive greater customer satisfaction. As industries continue to advance, the significance of mastering sand casting tolerances will only grow, underscoring the importance of continuous improvement and technological innovation in this age-old yet vital manufacturing method.
